Bridge Pin Drilling Jig


Bridge Pin Drilling Jig

from $22.95

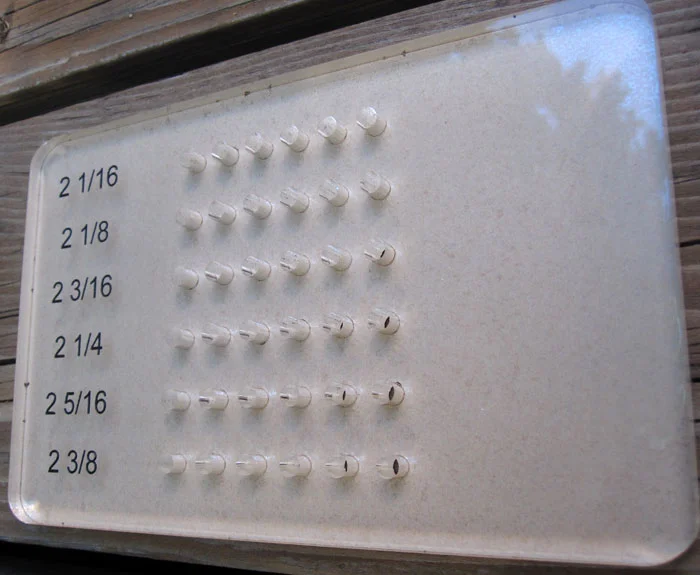

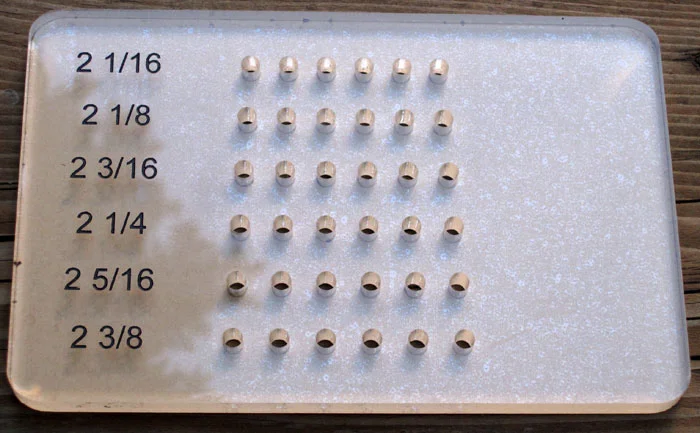

The jig is made from 3/8" Lucite, a very hard plastic material. The holes in the jig are 3/16" in diameter, the standard bridge pin hole size. We have 6 of the most common bridge spacing sizes available on one template. The bridge spacing sizes are as follows:

  • 2 1/16"

  • 2 1/8"

  • 2 3/16"

  • 2 1/4"

  • 2 5/16"

  • 2 3/8"

Overall Dimensions: 7" Tall x 4 1/2" Wide and 3/8" Thick

Prices below include shipping charges, one flat charge for domestic(US) and one flat charge for any country outside the US.

Shipping:
Quantity:
Add To Cart

A NEW and simple way to drill perfect and accurate bridge pin holes!

This jig was created and used by Edward Victor Dick of Victor Guitar , and Director of The Colorado School of Lutherie. Edward has been building and repairing instruments for over 35 years and developed this simple jig many years ago. We are now offering this bridge drilling template to the general public.

Drilling bridge pin holes accurately is not as easy as it seems. It never fails that the drill moves just a little while drilling, and it is very difficult to get perfectly aligned holes when drilling. This jig will help you get perfect holes drilled for the most common bridge pin spacing available. It can also be used to make perfect bridge templates.
